Use chart to order proper size. Measure OUTSIDE of Flue Tile. Each size of CHIM-A-LATOR® has 2.25 inches of adjustment.

Measure Height of Flue Tile Extending Out of Chimney. You will need a flue extension if this measurement is less than 1.25 inches.

Estimate Length of Flue. If longer than 30 ft. request longer cable when ordering a CHIM-A-LATOR®

CHIM-A-LATOR® shipped with 7 ft. of cable casing to protect cable at rub points. If offset is higher than 7 ft. order a longer piece.

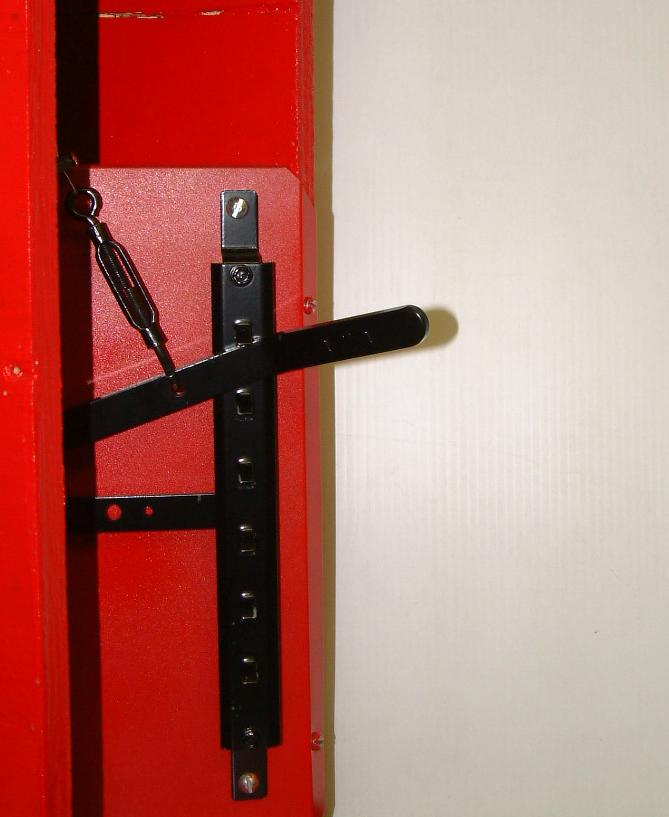

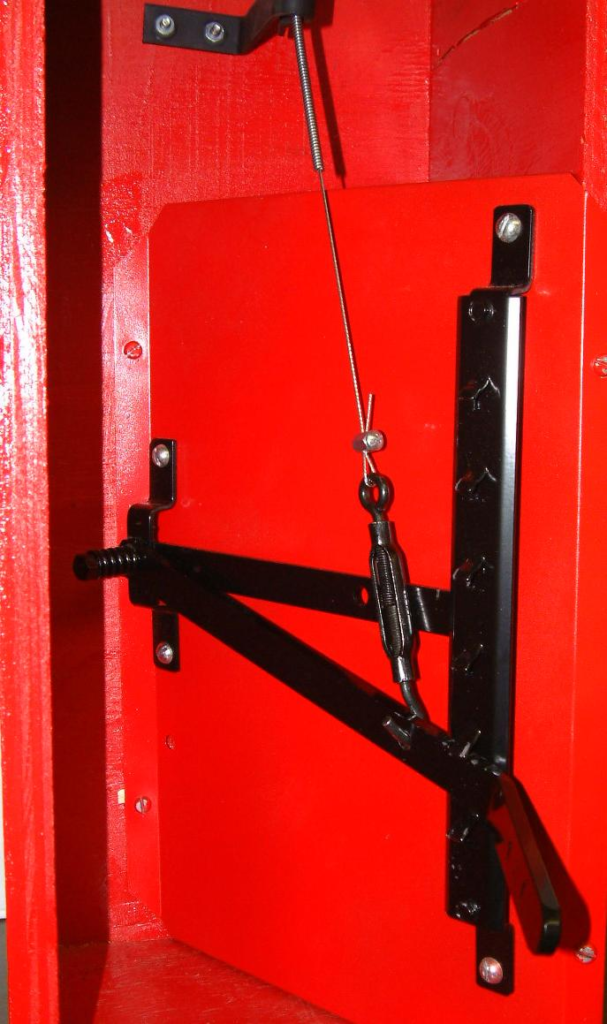

Attach handle assembly to side wall of fire box

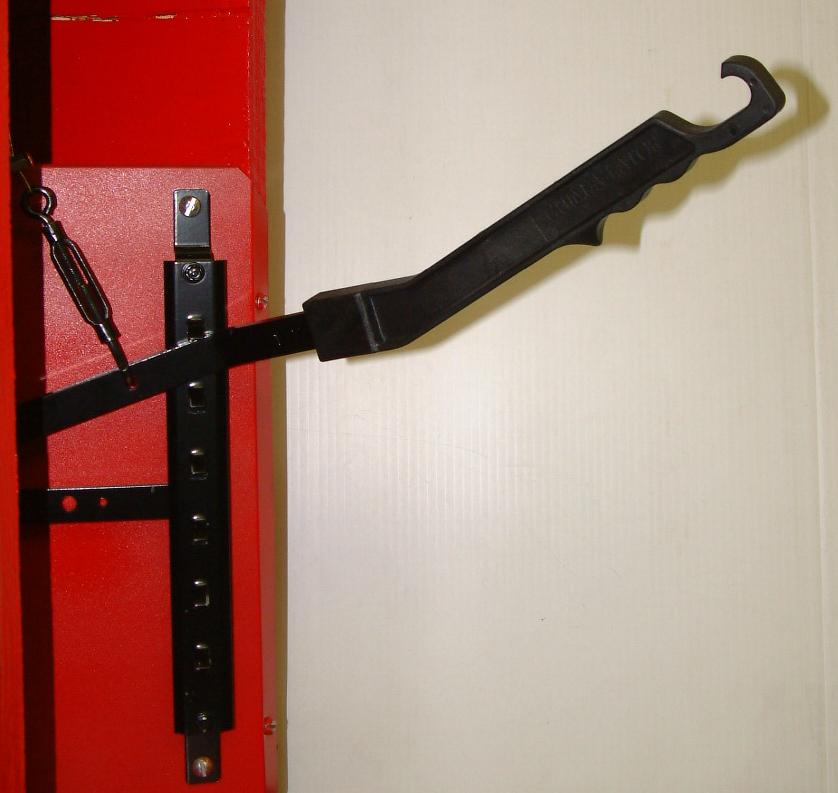

Position bracket to accept removable operation handle.
Bracket can be recessed if glass doors are present.

Available stock or custom.  Mounts to the cement crown around the flue or opening.

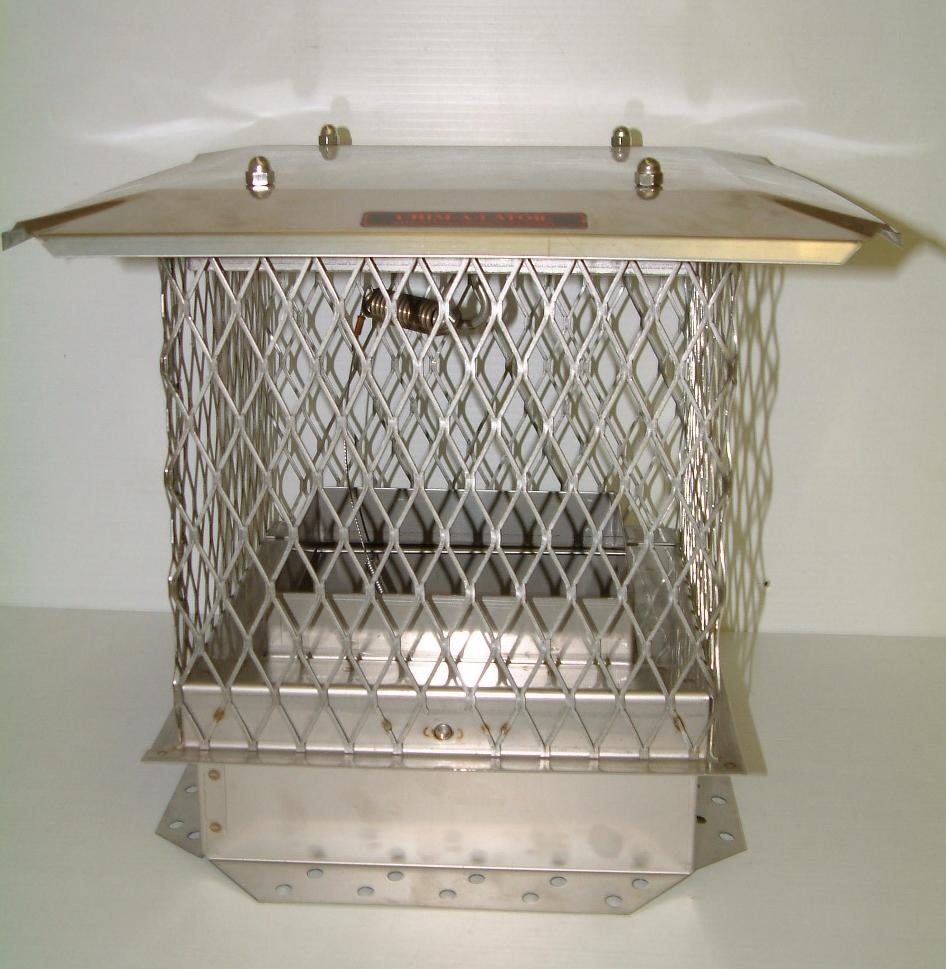

Chim-a-lator easily bolts to the flue extension

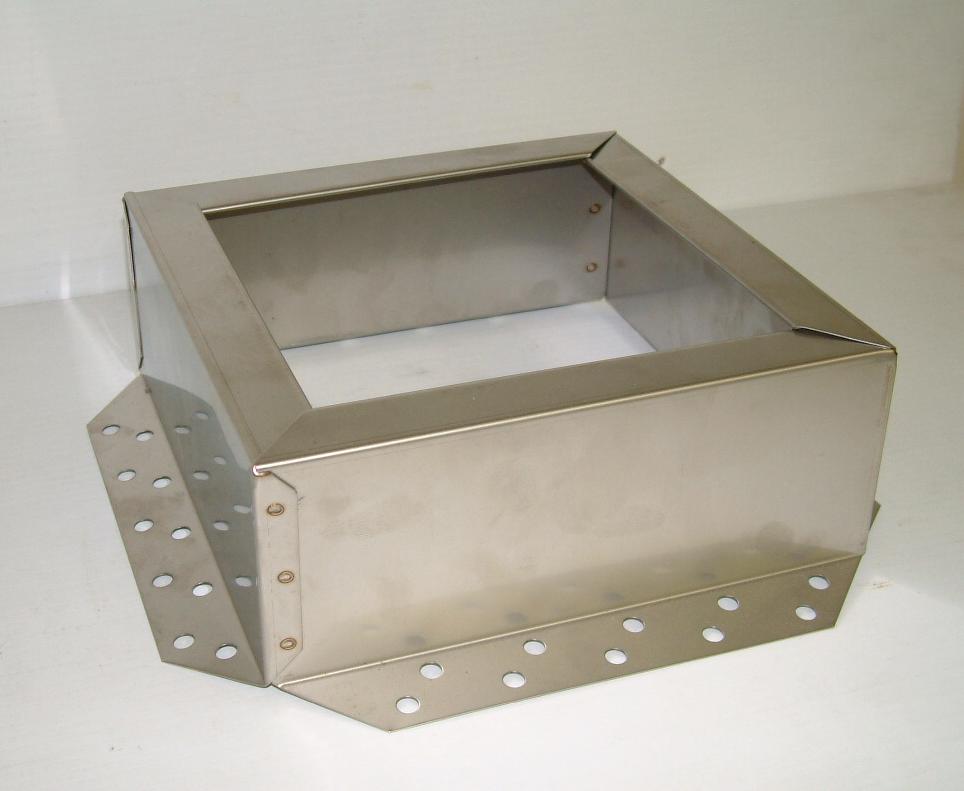

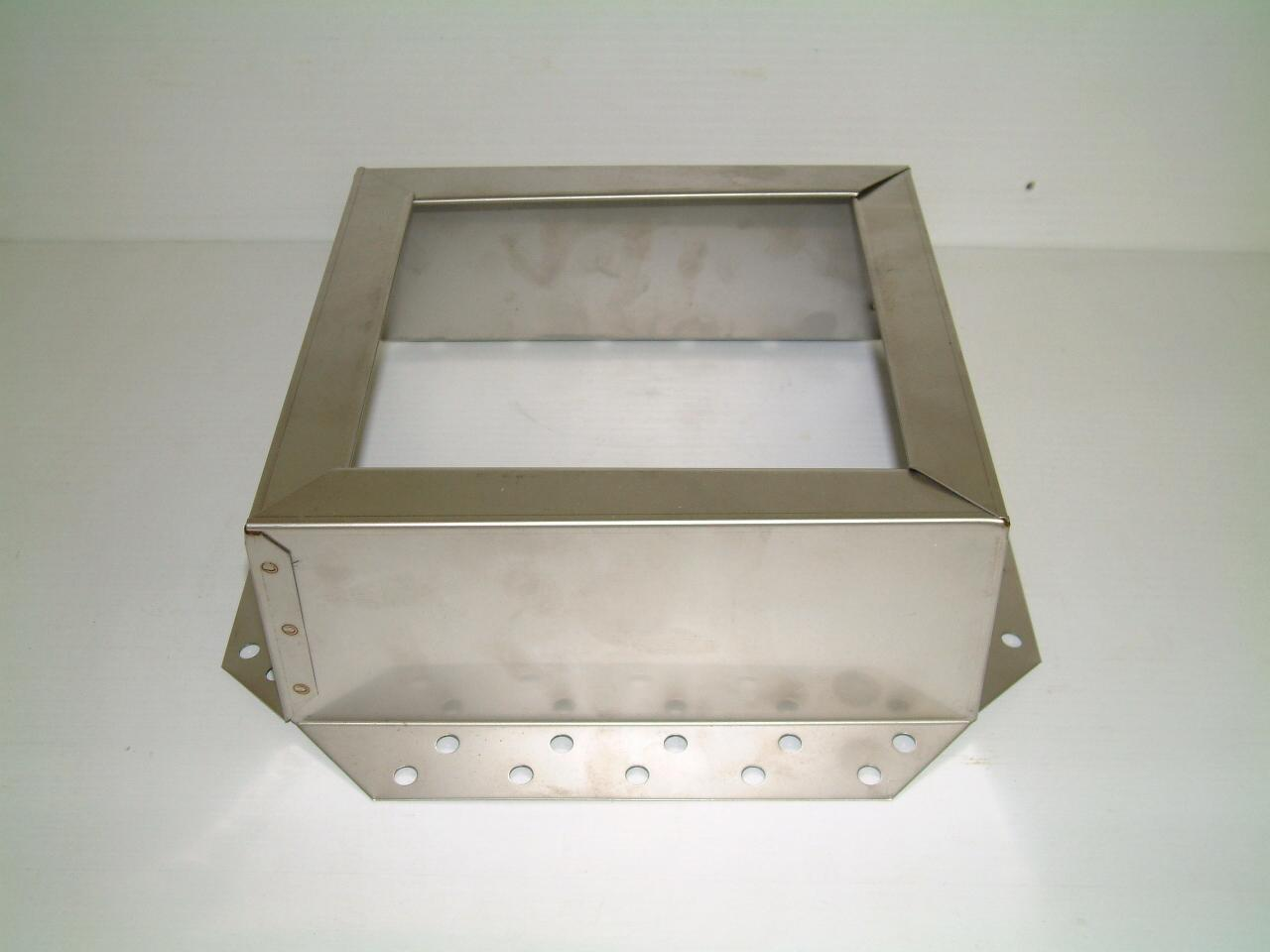

Stainless Steel Flue Extension

Installs on chimney where no flue is extending or flue is too short.  It is 4 inches high & tapcon screws are included.

17 available stock sizes & customs
